034Motorsport  |  SKU: 034-108-1043

034Motorsport | 4'' Carbon Fiber Closed-top Cold Air Intake Bundle (Audi RS3 8V / TTRS 8S)

$1,926.00 $1,955.00
Shipping calculated at checkout.

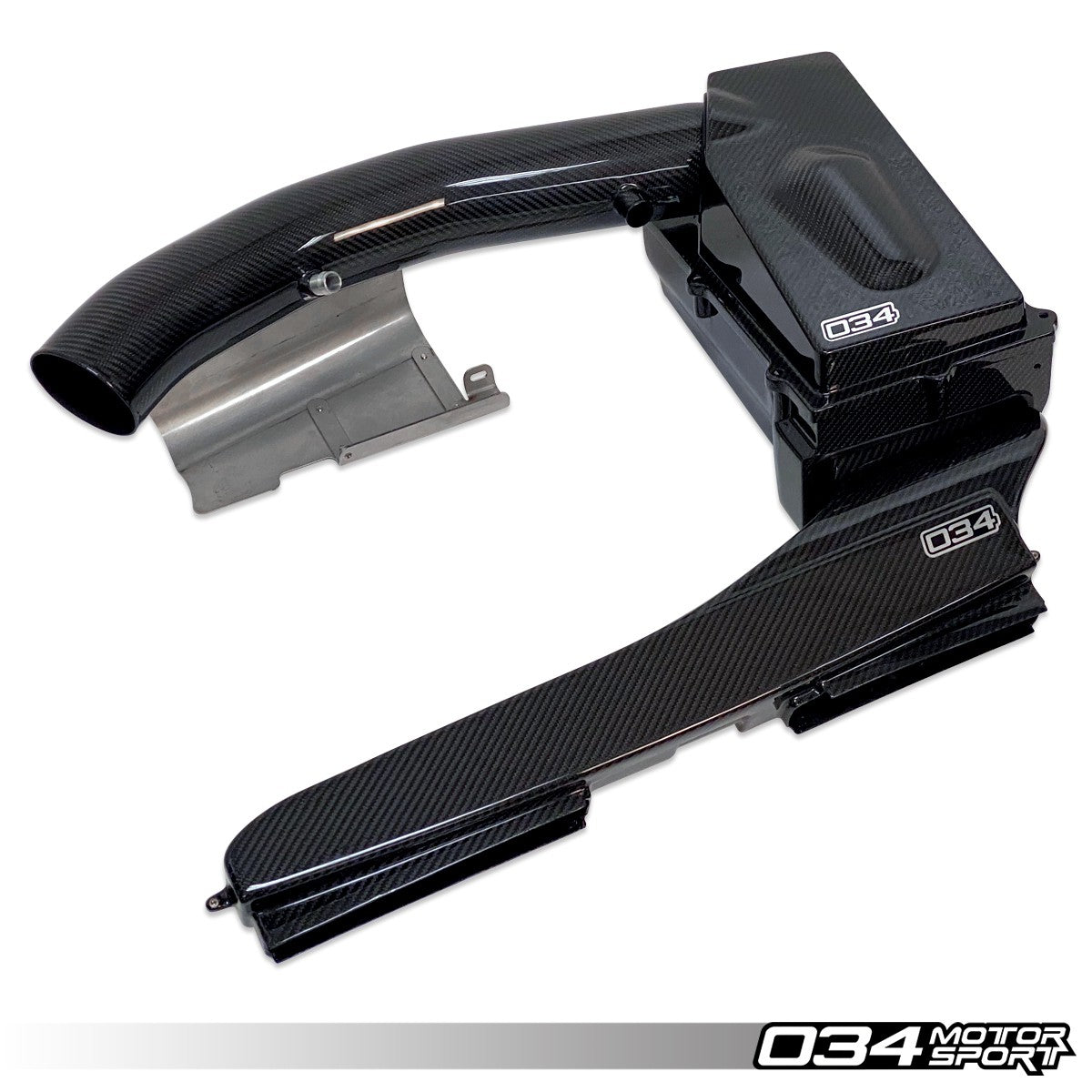

4'' Carbon Fiber Closed-top Cold Air Intake Bundle (Audi RS3 8V / TTRS 8S)

034Motorsport is pleased to present our X34 Carbon Fiber Closed-Top Cold Air Intake Bundle for the 2.5 TFSI EVO engine found in the 8S Audi TTRS and 8V Audi RS3 (FL)! 034Motorsport’s engineers spent extensive effort to develop a complete cold air intake solution for the TTRS and RS3 that yields horsepower and torque gains over the well-designed factory airbox. During the development process, many iterations were designed, prototyped, and tested, which resulted in this beautifully-manufactured Carbon Fiber Cold Air Intake System.
At ModsDirect, we love 034Motorsport parts and use it on our in-house vehicles!

X34 CARBON FIBER FRESH AIR DUCT AND LOWER AIRBOX PRESSURE DROP IMPROVEMENTS

Pressure Drop is the difference in ambient air pressure and the air pressure measured at the turbo inlet across the engine's rpm range. The higher the pressure drop at any given rpm, the more restrictive the intake system is, reducing airflow.
Intake Configuration Chart Color Pressure Drop
X34 4” Closed Top CAI w/ X34 Lower Airbox and Fresh Air Duct Yellow -0.75 psi
Stock Intake White -1.19 psi


MUSTANG DYNO-VERIFIED WHEEL HORSEPOWER & TORQUE GAINS

034Motorsport's engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the 034Motorsport Audi TTRS & RS3 4” Closed-Top Cold Air Intake System provided substantial increases in horsepower and torque on both stock turbo vehicles and ones with upgraded turbo kits alike.

PEAK WHEEL HORSEPOWER & TORQUE WITH STAGE 2 E85

  • Stock Intake w/4” inlet: 488 WHP / 459 WTQ
  • 034 X34 4” Intake w/4” inlet: 503 WHP / 462 WTQ
  • Peak Crank Gains: 19.7 HP / 15.7 TQ


Features

  • Fits both right hand drive and left hand drive configurations
  • High-Quality Carbon Fiber Construction
  • High Gloss Epoxy Finish
  • OEM+ Fit & Finish
  • Dyno-Proven Horsepower & Torque Gains
  • Increased Engine & Induction Sounds
  • Improved Throttle Response
  • Large-Diameter CFD-Optimized Air Intake Tube
  • Improved Airflow from Factory Airbox & Intake Tube
  • Reduced Intake Air Temperature
  • High Performance Pleated Cotton Air Filter
  • Full 4" intake tube for upgraded turbo inlets
  • Includes two high temp silicone couplers to accommodate OE size turbo inlets, or aftermarket 4" inlet

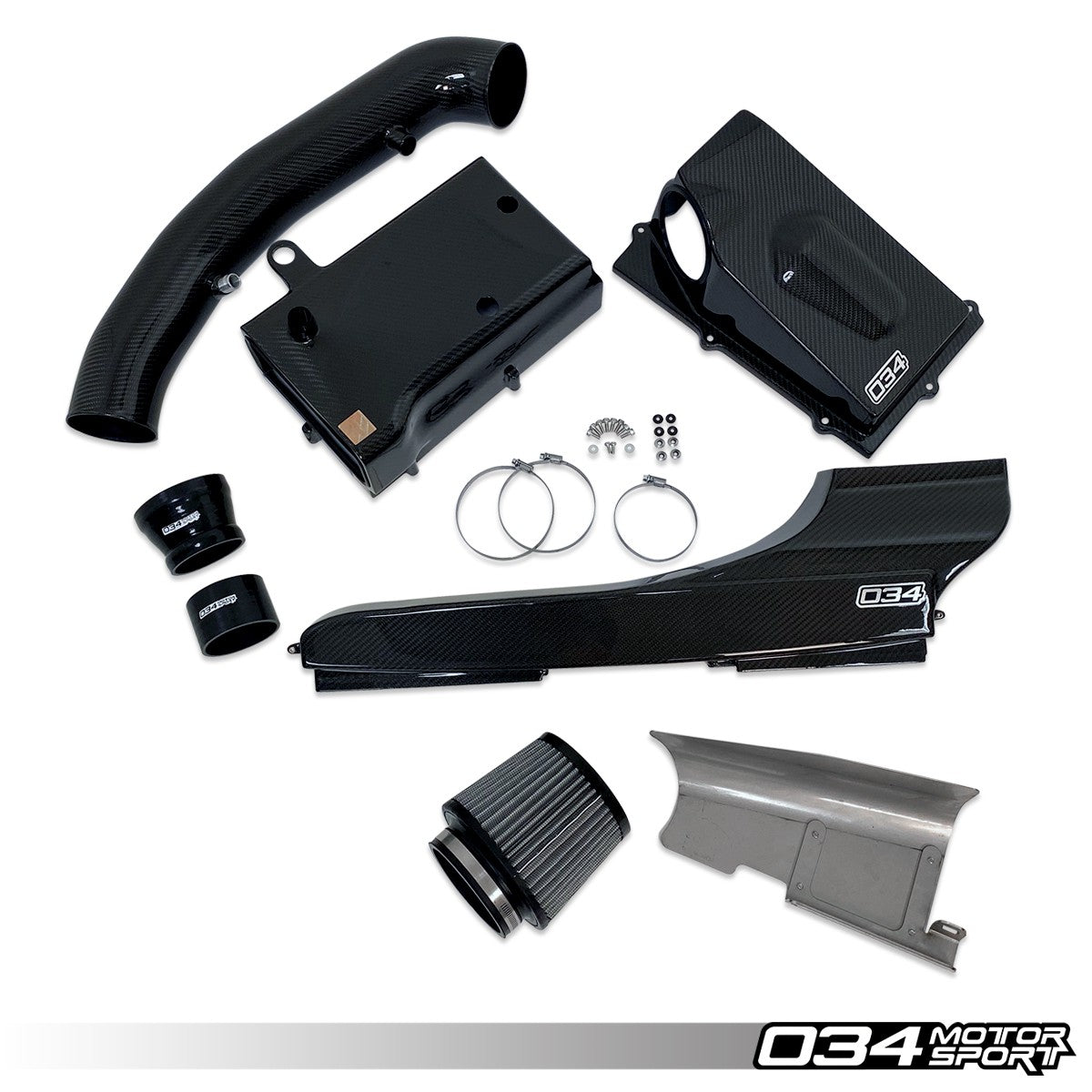

Parts

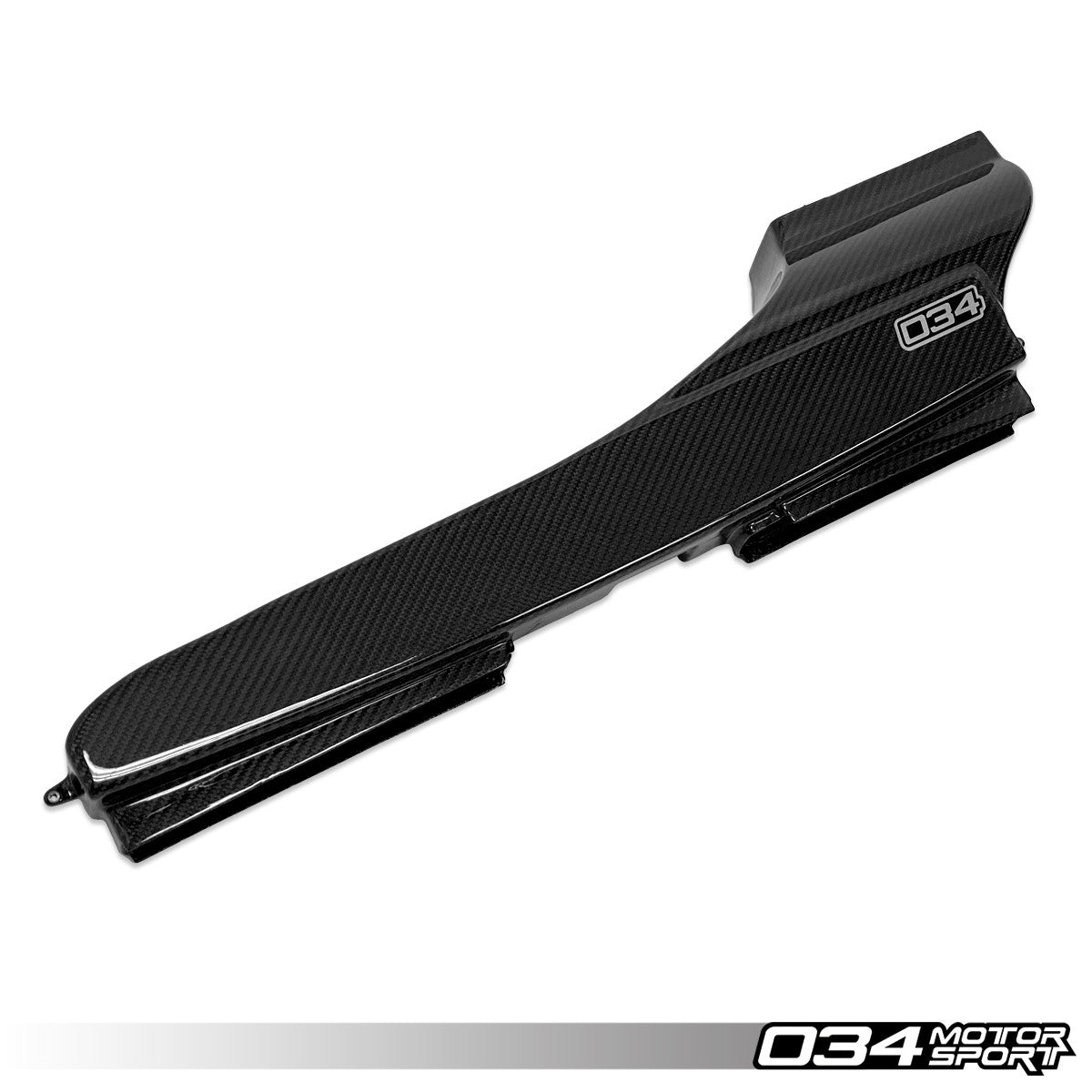

  • X34 Carbon Fiber Fresh Air Duct
  • X34 Carbon Fiber Lower Airbox
  • X34 Carbon Fiber Closed-Top Upper Airbox
  • X34 Carbon Fiber 4” Air Intake Tube
  • 034Motorsport Double-Layer Pleated Air Filter
  • 034Motorsport Stainless Steel Heat Shield
  • 034Motorsport Silicone Coupler
  • Installation Hardware

EARLY NON-US 8V.5 FITMENT NOTE

  • Please note that very early non-US 8V.5 Audi RS3's come with a heat shield that is not compatible with the 034Motorsport Auxiliary Heat Shield supplied with this intake kit.
  • The newer style OE heat shield can be purchased from an Audi dealer for under $100 USD. The OE part number is 07K 129 597 G. Once installed, the 034Motorsport Auxiliary Heat Shield can also be installed.
  Full installation guide available here.
