PULSAR TURBO | PRO106 106MM PRO MOD TURBO

$3,999.00
Shipping calculated at checkout.
Turbine Housing

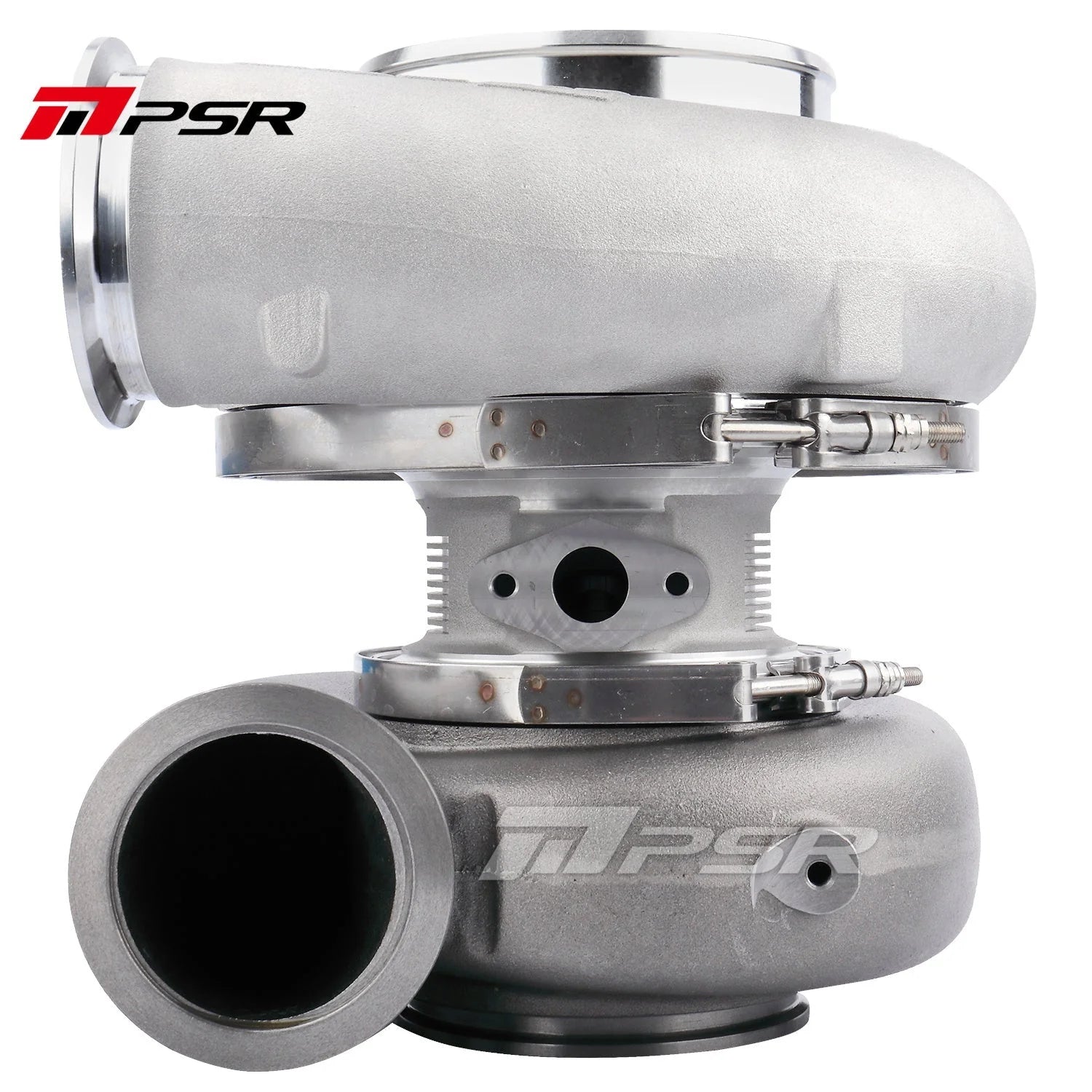

Pulsar PRO106 PRO MOD Turbo - Dual Ball Bearing System - Pulsar Turbo Systems

Manufactured with precision and reliability in mind, the Pulsar PRO106 PRO MOD is the right choice for your turbo build. Used across a wide range of applications, Pulsar has a solution to meet every budget and every build. The ball bearing system provides the ultimate turbo response with better durability and smooth rpm changes.   Typically in stock, may occasionally attract a 14 day lead time. Contact us for confirmation.

Key Features

    • Dual ceramic ball bearing system provides optimal turbo response &
      better durability by reducing the shaft-motion

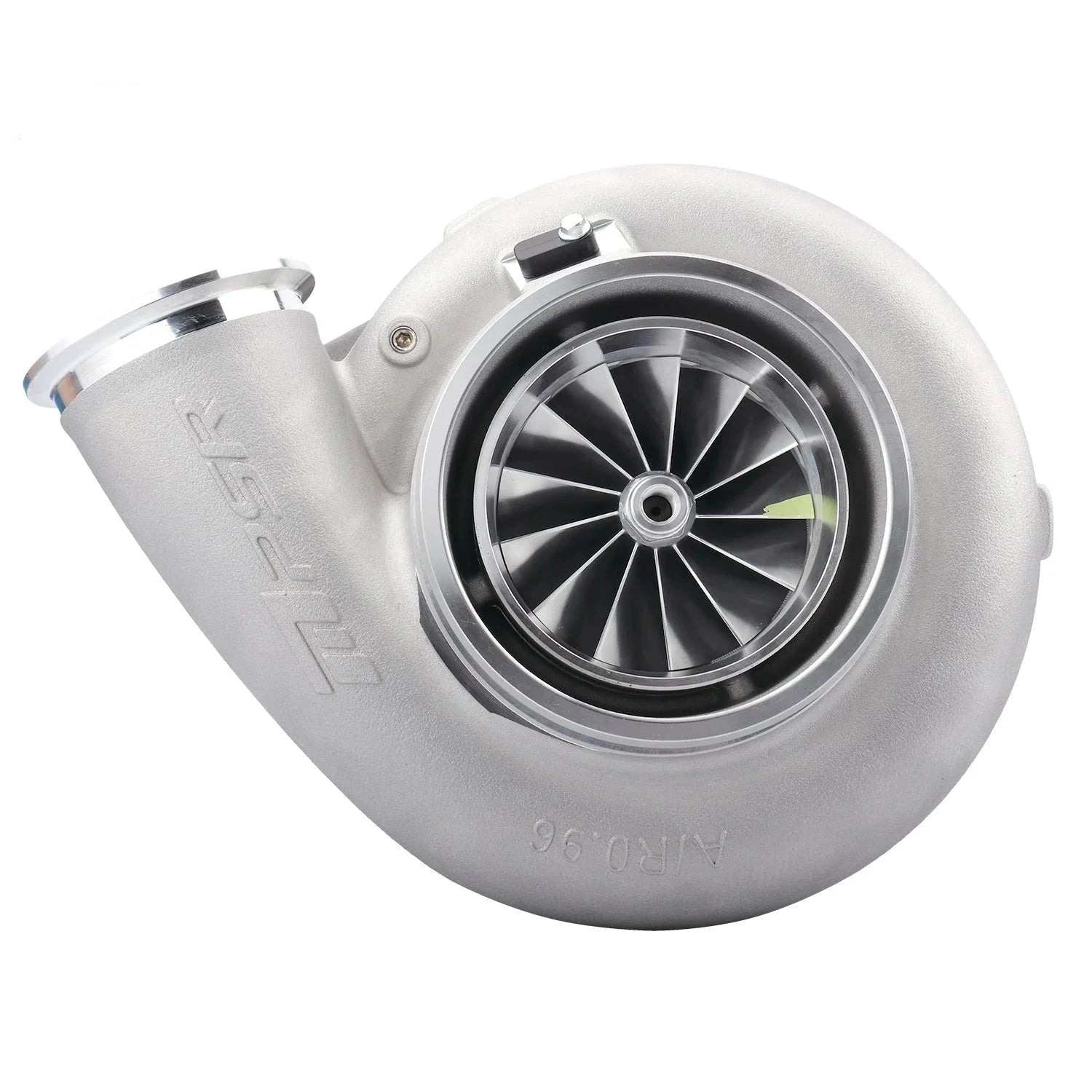

    • 13 Blade PTG-Aero billet compressor wheel 106mm inducer produces up to 3000 hp
    • 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
    • Fin cooled aluminum center housing, lighter weight
    • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
    • Outline interchangeable with GTX55 Gen II turbos
    • Compressor Wheel: 106*144mm
    • Turbine Wheel: 118*112mm
    • Compressor Inlet: 6” Hose
    • Compressor Outlet: 4” V-band
    • Compressor Housing A/R: 0.96
    • Turbine Inlet: 3.5” V-Band
    • Turbine Outlet: 5” V-Band
    • Turbine Housing A/R: 1.25

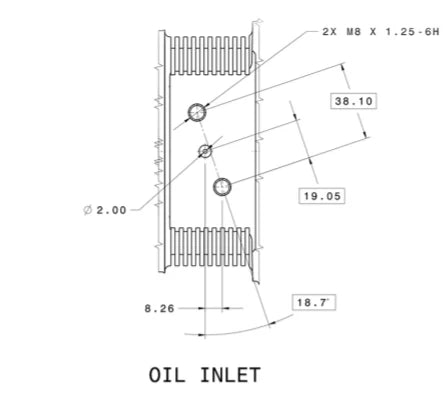

    • Oil Feed: See graph below(OIL INLET) (1mm restrictor will be needed, prevent higher than 45psi oil pressure into turbocharger’s internals)

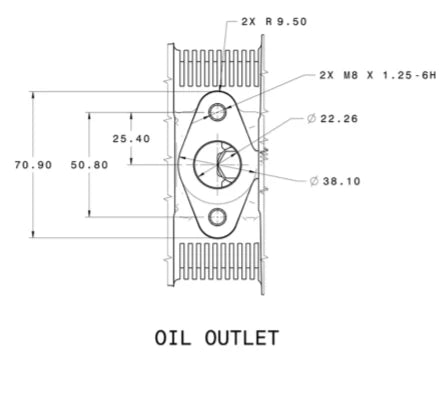

    • Oil Drain: See images

      If you have any questions, contact us!
