PULSAR TURBO | S480 Billet Turbo

$1,275.00
Shipping calculated at checkout.
Turbine Housing
Add Turbine Outlet Flange and Clamp

Pulsar S480 Billet Turbo - Pulsar Turbo Systems

Manufactured with precision and reliability in mind, the Pulsar S480 Billet Turbo is the right choice for your turbo build. Used across a wide range of applications, Pulsar has a solution to meet every budget and every build. Typically in stock, may occasionally attract a 14 day lead time. Contact us for confirmation.

Key Features

  • 7+7 blades 80*113mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics
  • S400 96*88mm Inconel 713 turbine wheel for high-temperature operation

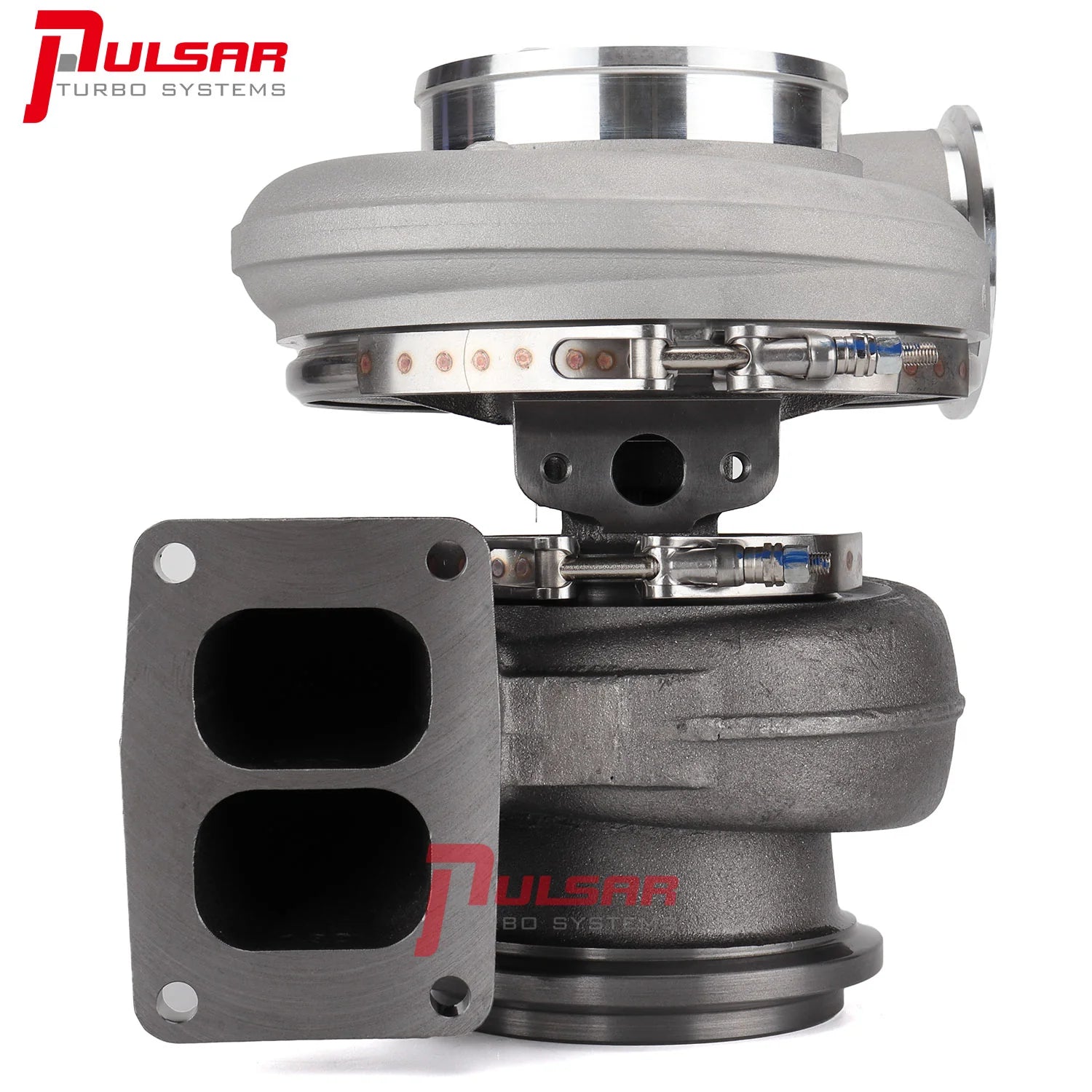

  • T6 Divided turbine housings in 1.32A/R? or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
  • T4 Divided turbine housing in 1.25 A/R 0r 1.10 A/R
  • Compressor flow rated at 120 lb/min capabilities ranging from 750 to 1400 horsepower
  • Compressor Wheel: 80*113mm
  • Turbine Wheel: 96*88mm or 83*74mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: V-Band
  • Turbine Inlet: T6 or T4
  • Turbine Outlet: 5.75″ Marmon(T6) or 4″ V-Band(T4)
  • Oil Feed: 1/4 NPT
  • Oil Drain: Std T6 Drain Flange
  • Outlet Flange and Clamp not included
